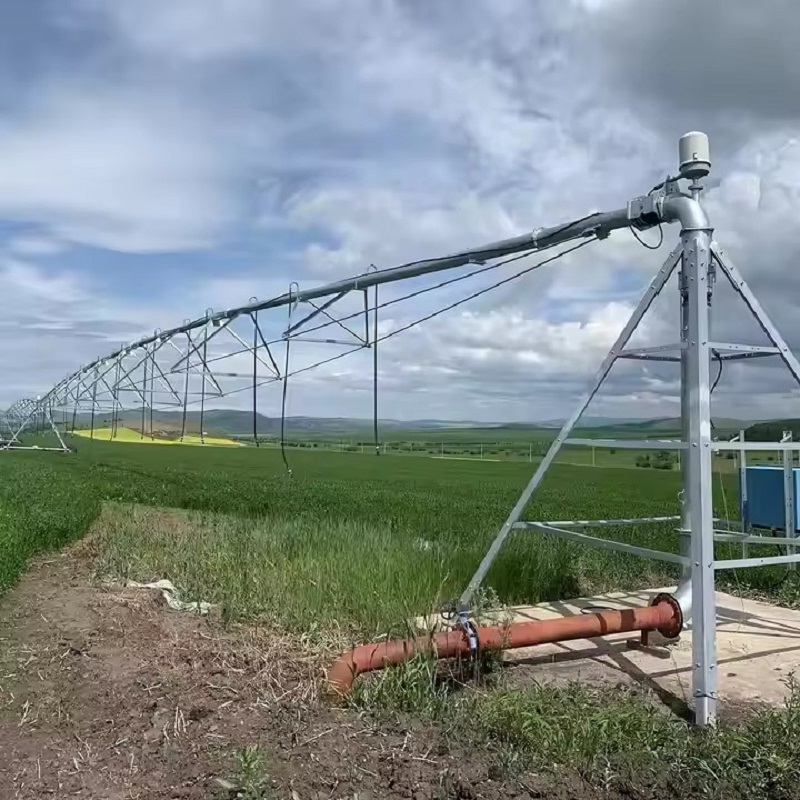

Center Pivot Irrigation Machine Electricity Center Pivot Translation Sprinkler Irrigation System

Product ID : DYP-48

Product Attributes :

diameter

16.8cm

Product name

Center Pivot Irrigation System

Application

Medium Land Irrigation System

Style

ZIMMATIC STYLE

usage

Agriculture

Product Description

Center Pivot Irrigation Machine Electricity Center Pivot Translation Sprinkler Irrigation System

Main pipe	D168mm, Thickness 3.2mm, Length 6.7m or 13.4m
Span	54.5m, 61.3m, 47.9m
Overhang	D141mm for the first 13.4m, 4 inch for the last 13.4m, Overhang Length 3.5m, 6.7m,10m, 13.4m, 16.8m, 20.1m, 26.8m
Collector ring	Mounted externally around the pivot elbow
Flange thickness	10mm
Angles for to pivot legs	100mmX100mmX8mm
Angles for tower legs	100mmX80mmX8mm
Angles for the truss	50mmX50mmX5mm
Truss rod	D22mm
Working electricity	380V 50HZ
Power supply	Public power or the generator set
Electrical cable	Amoured, UV resistant
